Pumps
Lobe Pumps

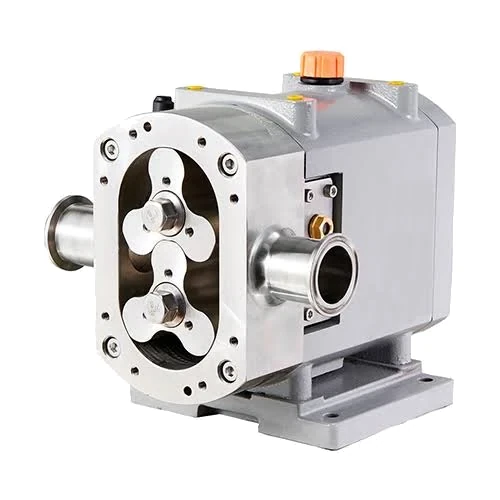

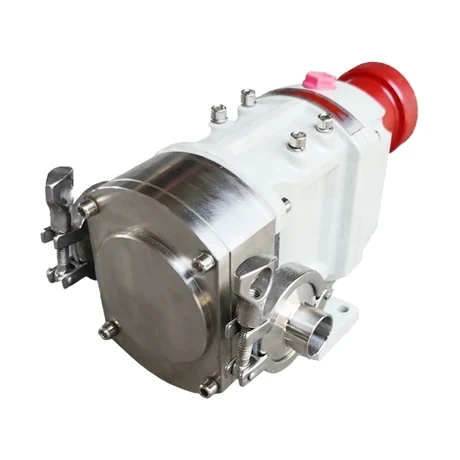

A two-way positive-displacement pump with a food-grade stainless steel body and two synchronised three-lobe rotors that turn in opposite directions without touching. The liquid is carried gently rather than sheared, which makes the pump particularly suited to food, dairy, juice, pharmaceutical and cosmetic products and to other high-viscosity fluids.
Nine sizes are available, with inlet and outlet bores from 25 to 100 mm, a discharge pressure up to 10 bar and a flow rate up to 79.2 m³/h.
Technical Specifications
| Model Range | 3RP-25 to 3RP-100 |
|---|---|
| Flow Rate | 2.1 – 79.2 m³/h |
| Capacity / 100 rev | 6 – 220 L |
| Discharge Pressure | Up to 10 bar |
| Speed | Up to 600 r/min |
| Motor Power | 2.2 – 75 kW |
| Inlet / Outlet | 25 – 100 mm |
| Max Viscosity | 2,000,000 cP |
| Solids Content | Up to 70% |
| Temperature Range | -50 °C to +250 °C |
| Sealing | Mechanical or packing seal |
| Connections | Flanged, threaded, quick-release |
Key Features
- Two-way pumping with gentle product handling, reducing damage to food and pharmaceutical products
- Transfers fluids with viscosity up to 2,000,000 cP
- Handles media containing up to 70% solids
- Serves as a metering pump when its speed is controlled by a frequency inverter
- No contact between the rotors, which reduces wear and extends service life
- Easy to maintain, clean, dismantle and reassemble
- High efficiency, low energy consumption and low noise
- Built with advanced technology to a quality close to German products
